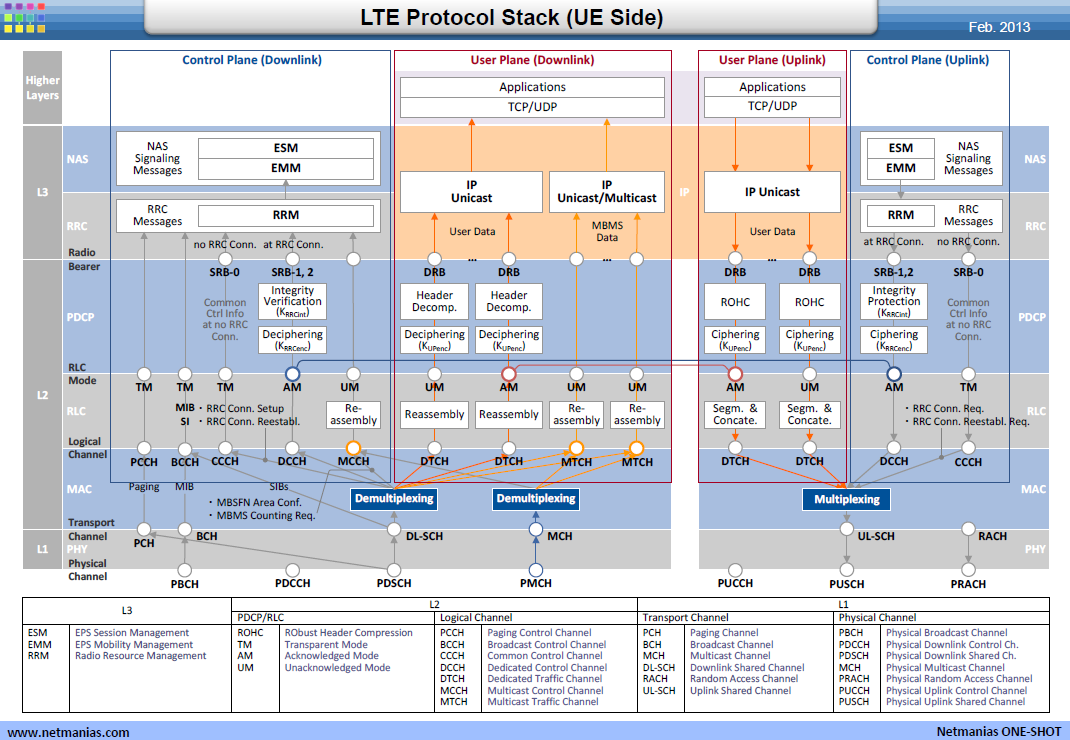

LTE Protocol Stack (UE Side)
February 14, 2013 | By Netmanias (tech@netmanias.com)
Comments (11)
12







Paulos Rizos 2013-10-09 17:46:49
This is a great visualisation. Is it possible to produce a copy without the MBMS elements? They clutter the picture and as no one is using MBMS at the moment they don't provide much value.
Chris Yoo 2013-10-10 09:48:26
My understanding is that the major mobile operators in US, Korea and India are now preparing eMBMS service.
sivakumar 2014-05-17 22:26:00
very very useful and How clearly mentioned the internal architecture ..thank you very much.
Asif Rizwan 2014-12-17 19:36:12

Thanks for sharing

Calvin Hobbes 2014-12-27 05:04:25

So neat and detailed, thanks.

Chairul Halim 2016-01-05 14:08:35

It's very useful diagram for troubleshooting and learning. It provide very detail of LTE protocol stacks on UE side. Thanks for sharing it.

Suraj 2017-03-02 18:58:18

Great Document and easiest visualisation of protocol stack. Thanks a lot

Roberto Roennebeck 2020-06-02 21:30:13

Thanks a lot. Great description !!

Sree 2020-11-20 14:50:05

Woww... Never seen such a good representation of LTE protocol stack before. All in one pic. Fabulous effort.

Dabbala Rajiv 2021-10-14 21:07:45

Thank you so much guys

Mehrafarin Dehghani 2021-12-30 00:41:33

Great description of LTE protocol stack!!!
