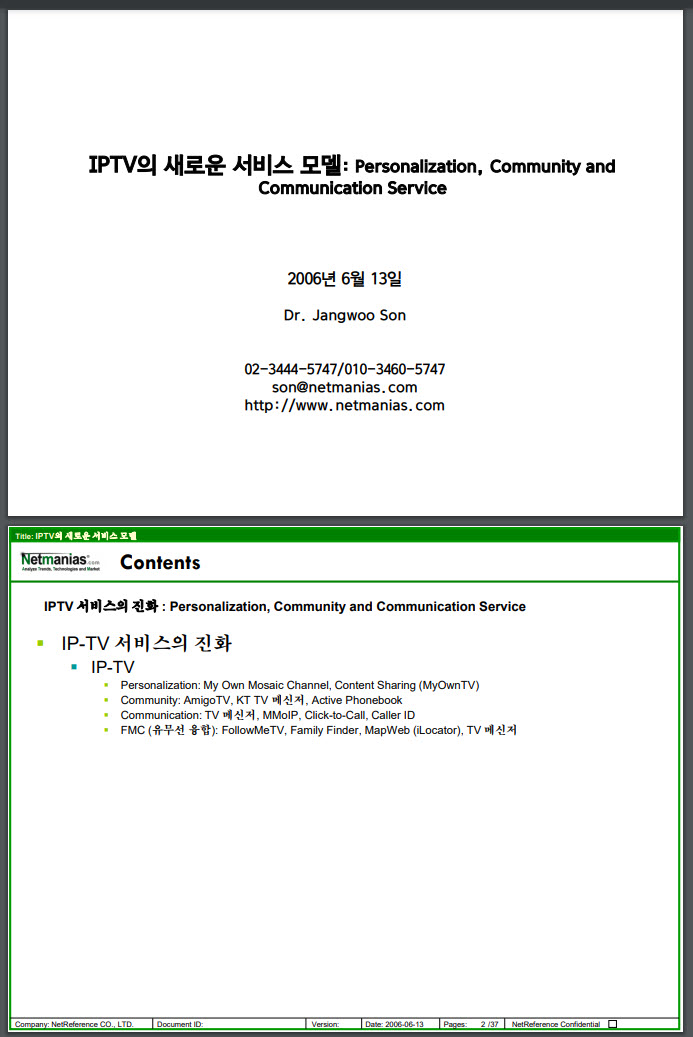

IPTV의새로운서비스모델: Personalization, Community and Communication Service
2006년6월13일
Dr. Jangwoo Son
02-3444-5747/010-3460-5747
son@netmanias.com
https://www.netmanias.com




Title: IPTV의새로운서비스모델

netmanias

Version:

Date: 2006-06-13

Pages:          /37

Company: NetReference CO., LTD.

NetReference Confidential








Document ID:

2

Contents

.IP-TV 서비스의진화

.IP-TV

.Personalization: My Own Mosaic Channel, Content Sharing (MyOwnTV)

.Community: AmigoTV, KT TV 메신저, Active Phonebook

.Communication: TV 메신저, MMoIP, Click-to-Call, Caller ID
