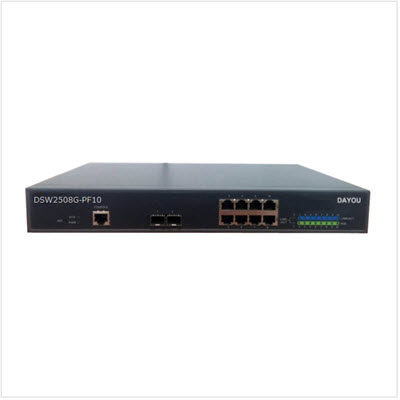

DSW2508G-PF10

L2 기가 PoE 스위치

MAC Switching Function
• Static configuration and dynamically

  learning of MAC address
• Check and delete MAC address
• Configuring of MAC address aging time
• Limit on MAC address learning number
• MAC address filtering function

VLAN
• 4K VLAN entries, GVRP , 1:1 and N:1 VLAN

  Mapping
• QinQ, Private VLAN

STP
• 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)
• BPDU protection, root protection and ring

  protection

Multicast
• IGMP v1/v2/v3
• IGMP Snooping
• IGMP Fast Leave
• Multicast group policy and multicast

  number limit
• Multicast traffic cross VLAN duplication

QoS
• Traffic classification of each field of

  L2/L3/L4 protocol headers
• CAR traffic control
• 802.1P/DSCP priority remark
• Multiple queuing algorithms such as SP,

  WRR or SP+WRR
• Tail-Drop
• Traffic supervision and traffic shaping

Security
• Identification and filtering of L2/L3/L4

  based ACL
• Defend against DOS or TCP attacks
• Suppression of broadcast, multicast and

  unknown uni-cast packet
• Port isolation
• Port security, IP+MAC+port binding
• DHCP Snooping, DHCP Option 82
• IEEE 802.1x certification
• Radius and BDTacacs+
• Command line authority control based on

  user levels

Reliability
• Static/LACP link aggregation
• EAPS and ERPS
• ISSU

Management
• Console, Telnet, SSH 2.0
• WEB based management style
• SNMP v1/v2/v3
• Upload and download of TFTP files
• RMON

Memory
• RAM 64M
• FLASH 8M

Performance
• 20Gbps Switching fabric, 15Mpps

  Throughput
• 8K MAC address,
• 4K 802.1Q VLAN
• 1K Multicast group entry

Power
• Operating Power AC220V
• Power Consumption 150 Watts
• Power Output (PoE) 120 Watts

  15.4/30.0 Watts (per Port)
• Operating Temperature 0℃ ~50℃
• Operating Humidity 10 ~ 90%(Non-

  condensing)

Dimensions
• Dimension(W/H/D)

  340mm x 44mm x 200mm
• Weight 3kg

Interface
• Downlink 8ports 10/100/1000Base-TX

  (PoE Port)
• Uplink 2ports 100Base-Fx/1000Base-X(SFP)
• Console RS-232C(RJ-45)n

Warranty
• One-year(12month) return to factory parts
