HFR
GPON
GPON OLT
HT7000G
Deployed in SK Broadband

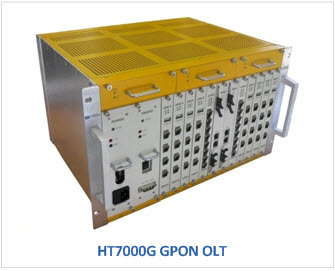

HT7000G GPON OLT



모델명 HT7000G
장비유형 GPON OLT
업링크 16xGE or 2x10GE
다운링크 Up to 32 GPON ports
용량 Duplex 200 Gbps
표준 ITU-T G.984.x GPON Compliant
크기 440(W)x280(H)x360(D) mm
도입사례 SK Broadband (Korea)
관련 솔루션 HFR의 FTTH/FTTB 솔루션
관련 제품 H5224G








제품 개요




HT7000G는 최대 32개의 GPON OLT 포트를 동시 수용할 수 있는 고용량 G-PON OLT 시스템입니다.



효율적이고 통합된 망 관리
기존의 AON 방식(L2, L3 스위치)의 네트워크 구성은 서비스 공급자와 가입자 사이에 많은 능동형 장치가 존재하여 관리 포인트가 증가되는 단점이 있었습니다. HT7000G을 이용한 GPON 솔루션은 관리 포인트를 줄여 운용 비용을 줄일 수 있습니다.

고속의 서비스
기존의 FTTx 가입자의 집선 방식은 100Mbps 속도의 이더넷을 이용했으나 HT7000G으로 구축한 GPON 망은 가입자에게 최대 2.488Gbps의 높은 대역폭을 할당할 수 있으며, 이는 다른 FTTx 솔루션인 EPON에 비해서도 2.5배 이상 빠른 대역폭입니다.

안정적인 서비스
지속적이고 장애 없는 서비스를 위해 HT7000G은 PIU(PON 포트 카드)를 제외한 모든 Unit이 이중화되어 있으며, 빠른 이중화 동작으로 고객의 서비스 중단을 최소화합니다.

다양한 서비스
HT7000G은 네트워크 정합을 위한 OSPF, BGP4등의 Full Layer 3 기능을 제공하며, IPTV를 위한 IGMP, PIM-SM, PIM-SSM등의 멀티캐스트 기능을 제공합니다. H/W 기반의 Access-list를 이용하여 다양한 서비스 정책을 수립할 수 있으며, 효율적인 스케줄링 기법을 통하여 최상의 QoS를 보장할 수 있습니다.





제품 특징




​- Supports maximum of 32 GPON OLT ports
- Provides 4 PON ports per PON Interface Unit
- Provides a maximum 16 ports of GE uplinks
- Supports 64 ONU per OLT port
- Full Layer 3 function provided
- Supports Duplex G-PON Type B protection
- Supports hot-swap for all units
- Multiple redundant Fan Assembly Unit
- Redundant Trunk Interface Unit
- Redundant Power Supply Unit
- Redundant Switching Control Unit
- Provides a maximum 2 ports of 10 GE uplink
- Real-time network traffic monitoring and analyzing


지원 표준




ITU-T G.984.x G-PON Compliant

IEEE802.3 CSMA/CD
IEEE802.1q VLAN Tagging
IEEE802.3ad Link Aggregation
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1p CoS
IEEE802.3x Flow Control, Storm Control

Routing Information Protocol (RIP v1 & v2)
Open Shortest Path First (OSPF)
Border Gateway Protocol (BGPv4)
Internet Group Management Protocol (IGMP) V1/V2/V3
Protocol Independent Multicast (PIM-SM, PIM-SSM)




제품 세부 기능




Platform

L2 / L3 + Non-Blocking Switching / Routing

19” Rack Mountable

12 slot chassis type

MAX 16/32 PON (4 ports/card)

8/16Gigabit Ethernet ports or 2 10 Gigabit Ethernet Ports

Hot Swappable Line Interface

Hot Swappable Power Supply & Fan Assembly Unit

G-PON

ITU-T G.984.x G-PON Compliant

Downstream : 2.5 Gbps

Upstream : 1.25 Gbps

Distance between OLT and ONU : Over 20km

Max 64 ONU per OLT port

Efficient DBA algorithm

Encryption (128bit AES)

Inter-operability with multi-vendor ONUs

Capacity & Performance

Throughput Duplex 200 Gbps

Packet Forwarding Simplex 148 Mpps

 (64 bytes packet size)

L2 Switching

IEEE802.3 CSMA/CD, IEEE802.1q VLAN Tagging

Double VLAN Tagging, Jumbo Frame

IEEE802.3ad Link Aggregation, IEEE802.1d STP

IEEE802.1w RSTP, IEEE802.1p CoS

IEEE802.3x Flow Control, Storm Control

Port Mirroring, MAX MAC Control per Port

L3 Routing

Routing Information Protocol (RIP v1 & v2)

Open Shortest Path First (OSPF)

Border Gateway Protocol (BGPv4)

Internet Group Management

Protocol (IGMP) V1/V2/V3

Protocol Independent Multicast (PIM-SM, PIM-SSM)



QoS

Packet classification and marking

Congestion Management (Input/Output Queuing)

Class of Service – 8 queues per port (802.1p)

DiffServ

Rate Limiting

Rate Shaping

Management & Security

SNMP I & II

Command Line Interface (CLI)

DHCP, DHCP Relay, DHCP Snooping

MAC Flood Guard, ARP spoofing prevention

NetBeui, NetBIOS, NBT, VistaLLDP filtering

Port Mirroring & Monitoring

Packet Filtering – IP, MAC, Application

Console, Telnet by Secure

System Software Upgrade - Local, Remote

Syslog – Configuration & Fault



Physical

Dimension (mm) 440(W) x 280(H) x 360(D)

Environmental Spec.

Operating Temp. 0 ~ 50 oC

Non-Operating Temp. -20 ~ 70 oC

Operating Humidity 20 ~ 80 % (non-condensing)

AC Power

Input Voltage 100 ~ 240 V AC

Frequency 50 ~ 60 Hz

Power consumption Max 400 W

DC Power

Input Voltage -42 ~ -54 V DC

Power consumption Max 400 W







도입 사례




► SK Broadband
