EMM Procedure 5. Periodic TAU

February 19, 2014 | By Netmanias (tech@netmanias.com)

Online viewer:

Comments (17)

SUMMARY

This document, as the fifth of the EMM Procedure series, will describe the periodic TAU procedure, as defined as EMM Case 5 in our technical document, “Eleven EMM Cases in an EMM Scenario”. This procedure is used when a UE, while staying inactive in ECM/RRC-Idle state, informs the MME of its current location (TAI, Tracking Area Identity) upon expiration of the periodic TAU timer. Between a UE and MME, no bearer (E-RAB) is set up, and only a signaling connection (ECM connection) is established. We will learn how the ECM connection is released and the UE returns to Idle state once a new TA is reported. We will also look into how information elements in EPS entities are different before and after the periodic TAU procedure.

Page 1 of 5

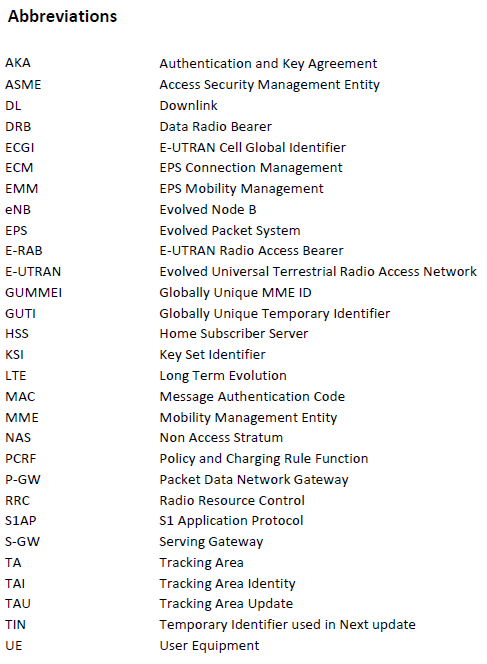

Table of Contents

1. Introduction
2. Concept of Periodic TAU
3. Procedure of Periodic TAU
4. EPS Entity Information: Before/After Periodic TAU

4.1 Before Periodic TAU

4.2 After Periodic TAU

5. Closing

1. Introduction

This document describes the periodic TAU (Tracking Area Update) procedure defined as EMM Case 5 in our technical document, “Eleven EMM Cases in an EMM Scenario” [1]. This procedure is performed when a UE which entered ECM/RRC-Idle state in the network due to no traffic periodically updates the network (MME) with its current location.

A TAU procedure is initiated when a UE enters a new TA that is not in the list of TAIs allocated by the MME at the time of the UE’s attach, or when the TAU timer expires. The EMM Case 5 presented in this document is related to the periodic TAU procedure performed by a UE upon expiration of the TAU timer. A UE in Idle state reports its current location to the MME by sending a TAU Request message when the TAU timer expires. After transiting to ECM/RRC-Connected state, and performing the periodic TAU procedure, the UE returns to Idle state.

This document explains the periodic TAU procedure performed by a UE in Idle state in an LTE network.

Chapter 2 explains the concept of periodic TAU, and

Chapter 3 describes its specific procedures. Finally,

Chapter 4 summarizes how information elements in EPS entities are different before and after the procedure.
