LTE EMM and ECM States

September 20, 2013 | By Netmanias (tech@netmanias.com)

Online viewer:

HTML

Download
PDF File

Comments (20)

Page 2 of 6

Table of Contents

1. Introduction
2. EMM, ECM and RRC States
3. EMM State Transition
4. EMM Features

5. EMM User Information

6. Closing

2. EMM, ECM and RRC States

2.1 Type of EMM Procedures

Table 1 lists the types of EMM procedures supported by NAS protocols and the specific procedures belonging to each of these types. Detailed EMM procedures will be discussed through the documents to be presented later on. We will briefly see what specific procedures are in each EMM type.

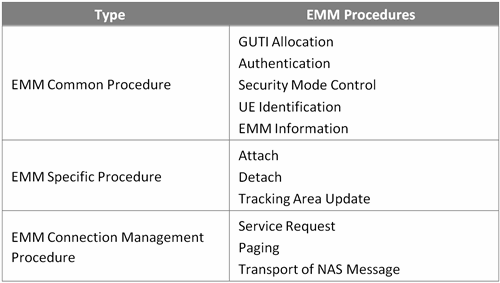

Table 1. Types of EMM procedures

There are three types of EMM procedures as follows:

EMM common procedure: Refers to one that can always be initiated whilst a NAS signaling connection exists between a UE and MME. This procedure can be divided further into five procedures : globally unique temporary identifier (GUTI) allocation, authentication, identification, security mode control (SMC), and EMM information;
EMM specific procedure: Refers to one that is related to user mobility (registration and location update). It can be divided further into three procedures: attach, detach and TA update (TAU). In an LTE network built with an existing 3GPP network, additional procedures (i.e. combined attach, combined detach and combined tracking area update) are also included in the procedure. However, since this document discuss an LTE network only, these procedures are excluded in Table 1 (See “LTE Interworking” technical document (TBD)) for more information about the procedures); and
EMM connection management procedure: Refers to one related to establishing a NAS signaling connection. It can be divided further into three procedures: service request, paging and transport of NAS messages.

2.2 EMM/ ECM/ RRC State

EMM is a sub-layer of the NAS layer. As an EMM procedure proceeds, a UE can have one of the seven EMM states¹ and an MME can have one of the four EMM states² . Among these states, some states such as “EMM-Registered” and “EMM-Deregistered” are the common states that both entities can have. Hereinafter, EMM states will refer to these two states (See [1] for more information about other EMM states.).

In order for a UE and an MME exchange NAS messages with each other, a signaling connection for exchanging NAS messages must be established between them. This connection is called EPS Connection Management (ECM) connection. It is a logical connection consisting of RRC connection between a UE and an eNB, and S1 signaling connection between the eNB and an MME as seen in Figure 1. This means, when an ECM connection is established/terminated, the RRC and S1 signaling connections are all established/terminated as well. To a UE, an established ECM connection means having an RRC connection established with an eNB, and to an MME it means having an S1 signaling connection established with the eNB.

Figure 1 illustrates EMM, ECM and RRC states associated with the UE and MME³. EMM can be in either “EMM-Registered” or “EMM-Deregistered” state depending on whether the UE is attached to, or detached from, the network. ECM can have either “ECM-Connected” or “ECM-Idle” depending on whether a NAS signaling connection (i.e. ECM connection) is established or not. Likewise, RRC can be in either “RRC-Connected” or “RRC-Idle” depending on whether an RRC connection is established or not. Table 2 shows in what conditions a UE stays in a particular state.

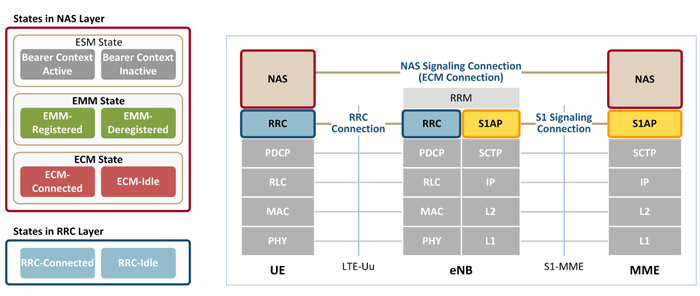

Figure 1. EMM, ECM and RRC states

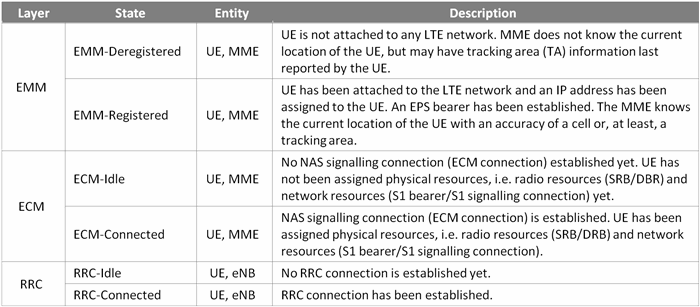

Table 2. Description of EMM, ECM and RRC states
